FLIQ: Draw Water Networks. Faster.

Prepare clear water network schematics without complex CAD workflows. Drag in the assets, connect the pipes, add the information, then export or print.

Request Free Software See features

Version 0.8.1 · Free software, sent to you by email

FLIQ: Water Network Schematic Builder
FLIQ desktop application showing a water network schematic, the symbol toolbar and the properties panel.
Introduction

Schematics, without the CAD.

FLIQ is a focused desktop tool for preparing water network schematics: sources, storage, pumping stations, valves, meters and the pipes that connect them.

It was developed by HiWater Sdn Bhd for engineers who need a clear, editable and printable drawing of a network. Project files stay on your computer.

  • WindowsDesktop application
  • .hwschematicProject files stored locally
  • PNG · JPEG · SVGImage export
  • A4 · A3Printing

FLIQ is intended for schematic preparation only. It does not perform hydraulic calculations, engineering validation or design approval.

Features

Built for how water engineers draw.

  • Network symbols

    Source, storage, pumping, valves, meters, network nodes and text labels, all from one toolbar.

  • Pipes with real attributes

    Set pipe type, diameter and material, manage your material list and show the labels on the drawing.

  • Flow arrows

    Show the flow direction on a pipe and reverse it without changing the pipe geometry or its connections.

  • Editable bends

    Double-click a pipe to add a bend, drag the handle to reshape the route, right-click to remove it.

  • Properties and appearance

    Select any symbol or pipe to edit its details and change how it looks, in a side panel that stays out of the way.

  • Search and navigate

    Search across the schematic, zoom to fit, snap to the grid, and undo or redo any change.

  • Export to image

    Save the schematic as PNG, JPEG or SVG for reports, proposals and presentations.

  • A4 and A3 printing

    Print the finished schematic on A4 or A3 straight from the application.

Screenshots

See FLIQ at work.

FLIQ: Water Network Schematic Builder
The full FLIQ window with toolbar, canvas and properties panel.
The full window: file and edit actions on top, the symbol toolbar over the canvas and a properties panel on the right.
Schematic canvas

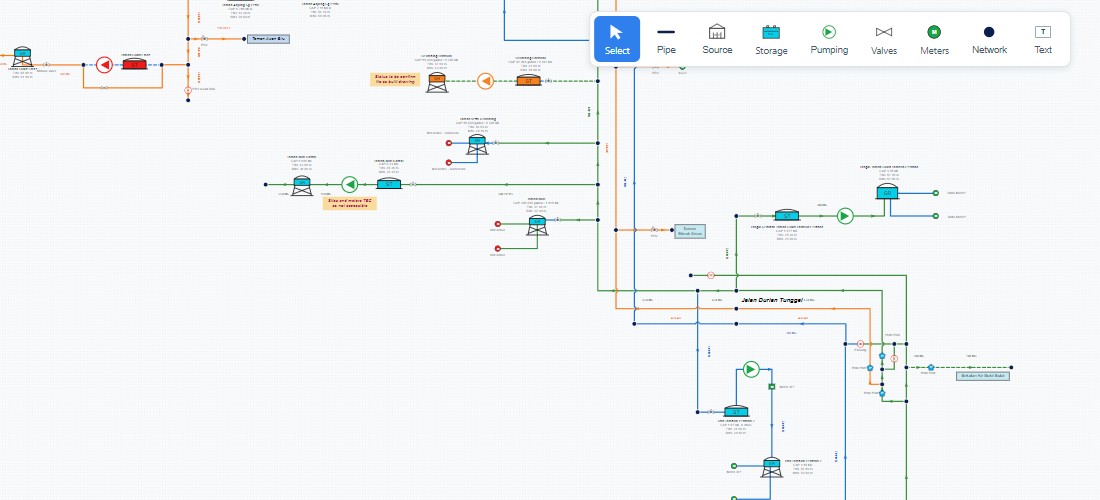

Close-up of a FLIQ schematic with storage tanks, pumps, valves, meters and coloured pipelines.
Tanks, pumps, valves, meters and pipelines on a clean grid, with the symbol toolbar floating above the canvas.
Properties panel

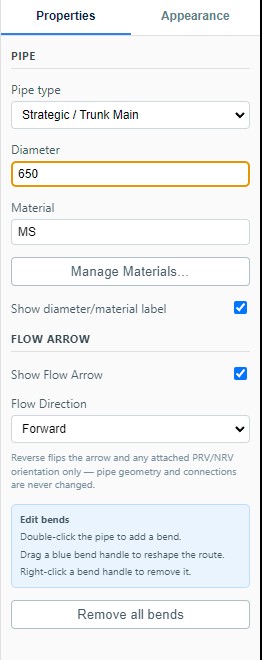

The FLIQ properties panel for a selected pipe: pipe type, diameter, material, flow arrow and bend editing.
Pipe type, diameter and material, flow arrow direction and bend editing for the selected pipe.
Free software

Request FLIQ for free.

Send us a short request and we will email you the FLIQ software with the download link, ready to install and start your first schematic.

FLIQ for Windows

Version 0.8.1 · Windows desktop application

Request Free FLIQ Software
  1. Open the request form: the service is already set to "Request FLIQ Free Software".
  2. Add your name, organisation and email, then send.
  3. We email you the software and the download link.
